Bookings
The booking workflow pages — list and map booking entry, the dispatch planner, auto-assigned and intercity bookings, cancellations, call-flow summary and PNR lookup.
The Bookings area covers the whole trip lifecycle, from taking a call to dispatching a
vehicle and looking a trip up afterwards. It groups eight pages: two booking-entry screens
(bookingV1.html for form entry, bookingV2.html for map entry), the live dispatch board
(bookingPlanner.html), two trip lists (autoAssignedBookings.html, intercityBookings.html),
and three report/lookup screens (cancelledBooking.html, callFlow.html, pnr.html).
The list and report pages are standard DataTables screens — see Tables for sorting, the per-column search row and the multi-filter panel they all share. Every page is assembled from the kit's shared layout (header, sidebar, page header, card panels and a responsive grid); see Layout.
Booking — List View (bookingV1.html)
The primary manual booking screen. A call agent uses it to capture a new trip while a caller is on the line. It is a two-column layout: a vehicle-availability accordion on the left and the full booking form on the right.
The left column is a Bootstrap accordion with four collapsible panels:
| Accordion panel | Contents |
|---|---|
| Custom Vehicle Search | Look up a vehicle by number, registration or mobile; expands a full details table (driver, model, seat capacity, current location, today/total collection, pending target). |
| Consolidated Details | Live status counts — Free, Running, Allotted, Break, Leave — with total and assigned vehicle totals. |
| Free Vehicle | Table of available vehicles (vehicle, location, distance) with a live count badge. |
| Assigned Vehicle | Vehicles already on assigned trips, same columns. |
The right column is #bookingForm. Key fields: Caller Mobile, Unique ID (read-only), Call Type
(Booking / Enquiry / Follow-up / Feedback / VNA), Customer Name and Mobile, Zone, Pickup and Drop
Location, Passengers, Preferred Model, Tariff Type (Local / Rental / Outstation / Airport /
Package), three switches (Schedule Booking, Round Trip, Emergency), Pickup Date/Time, Landmark,
Remarks, Follow-up Mobile, Landline, Number of Vehicles and Accessories. Actions are Reset
and Book Now. The location/model/zone selects are Select2 dropdowns — see
Forms.
Customize: Field options live in the page markup (callType, tariffType) or are populated from
assets/js/pages/shared/data.js via assets/js/pages/bookings/bookingV1.js. Add or remove
form fields in the .row blocks; drop an unused accordion panel by deleting its markup from the
left column.

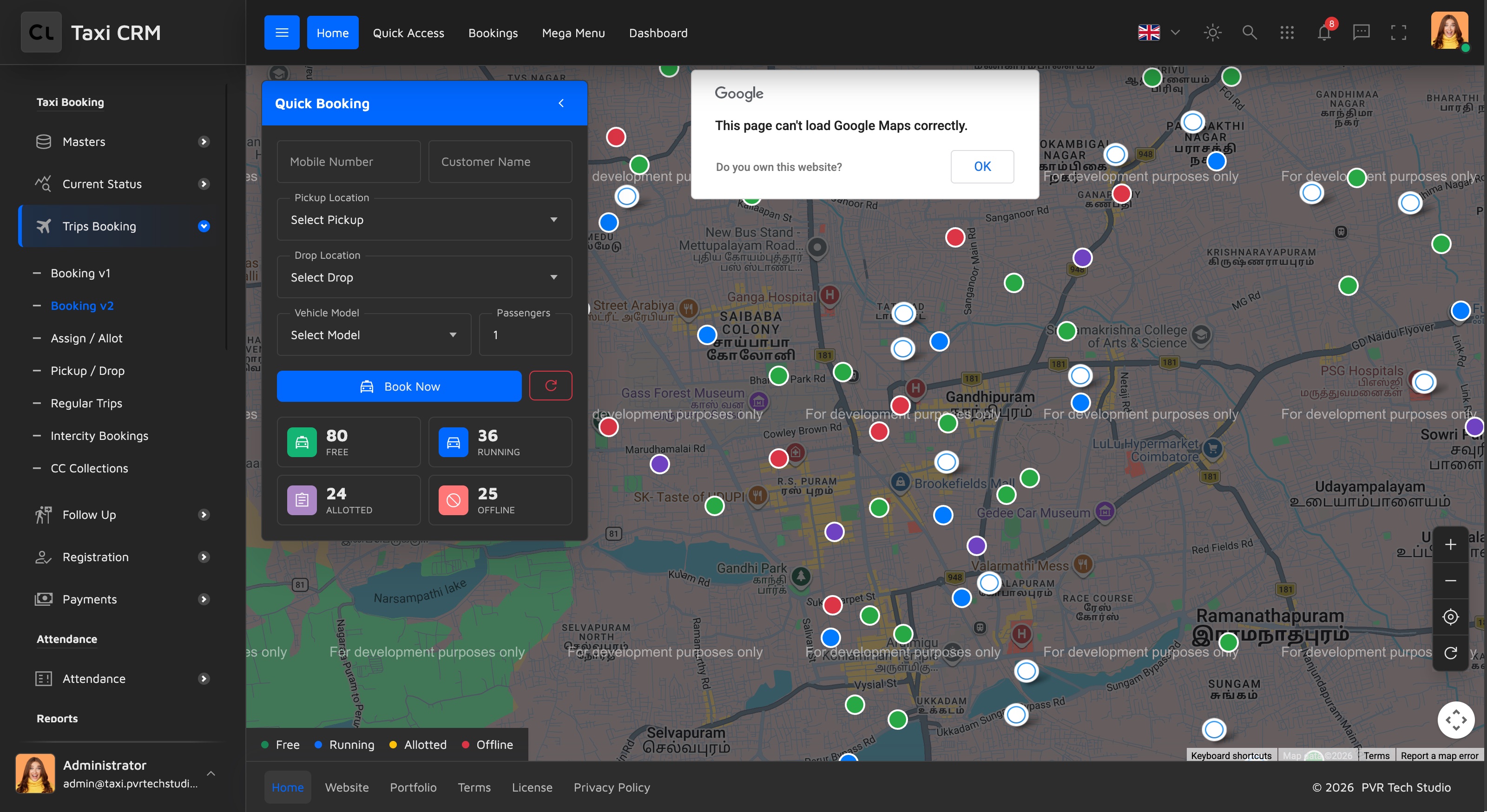

Booking — Map View (bookingV2.html)
A full-screen map-based dispatch alternative to the form view, for agents who allocate by
seeing where vehicles are. It renders a Google Map (#bookingMap, loaded with a mapAPIKey
and marker clustering) with floating panels overlaid.
- Quick Booking panel (left, collapsible): a condensed form — Mobile, Name, Pickup, Drop, Vehicle Model, Pax — plus Book Now / reset. Below it, four clickable vehicle stat cards (Free, Running, Allotted, Offline) that double as map filters.
- Info panel (right, collapsible): shows context for the current selection in three sections — Route Info (distance, duration, estimated fare with a base/distance/time fare breakdown), Nearby Vehicles (count + list), and Vehicle Info (driver, mobile, status badge, location, distance) with an Assign Vehicle action.
- Map controls (zoom in/out, center, refresh vehicles) and a Legend keyed to the marker colours: Free (green), Running (blue/primary), Allotted (amber), Offline (red).
Customize: Set your Google Maps key where mapAPIKey is defined; map behaviour, marker
data and fare math live in assets/js/pages/bookings/bookingV2.js. Marker colours map to the
same statuses as the stat cards — keep the two in sync if you rename a status. Responsive
behaviour stacks the panels below the map on tablet/mobile.

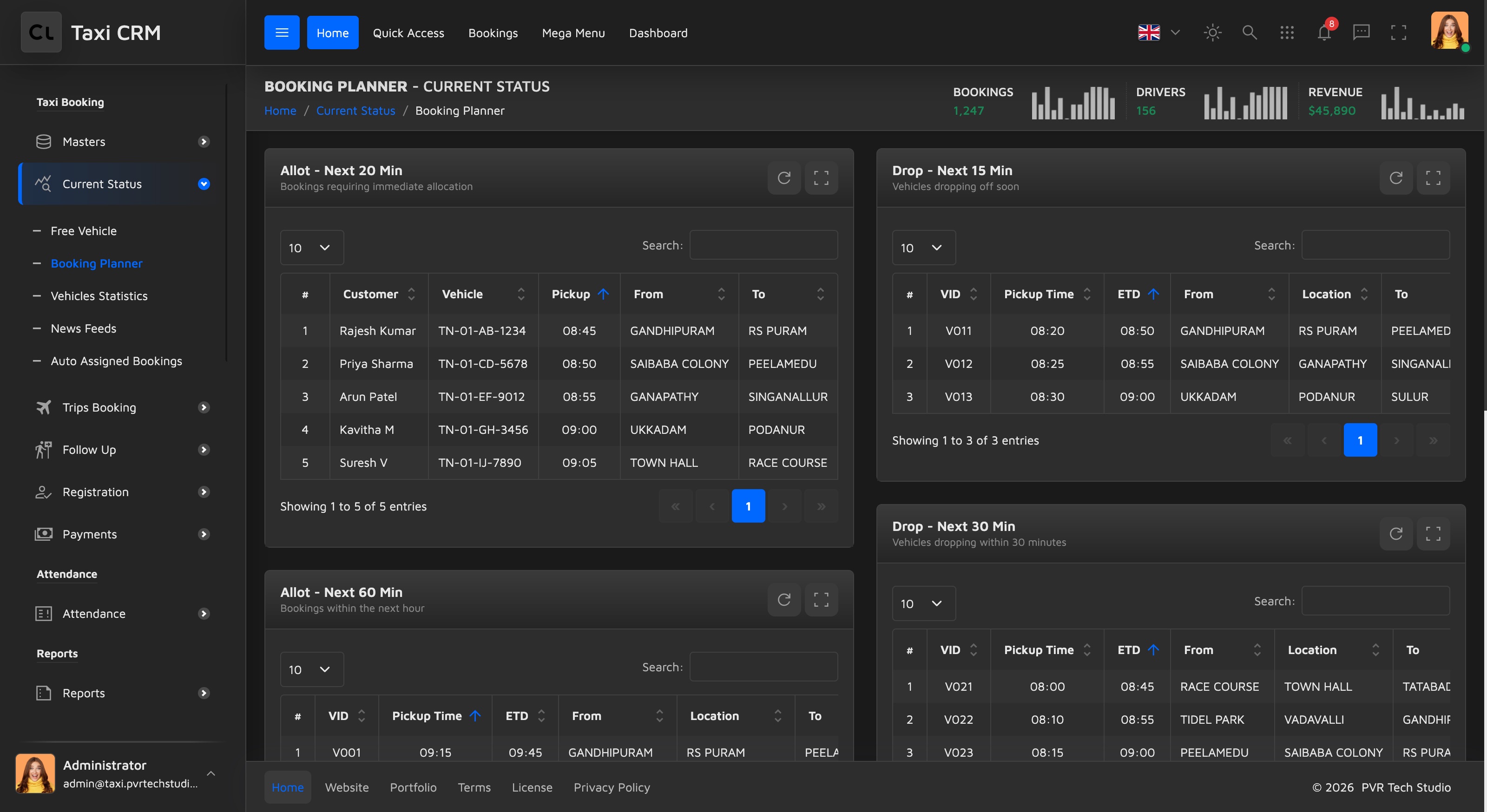

Booking Planner (bookingPlanner.html)
A live dispatch board showing what needs attention now, split into six time-bucketed tables across two columns. Dispatchers use it to work the queue by urgency.
- Allot (left column): bookings still needing a vehicle — Next 20 Min, Next 60 Min, More Than 60 Min.
- Drop (right column): vehicles about to free up — Next 15 Min, Next 30 Min, Next 60 Min.
The Allot tables carry columns like Customer, Vehicle / Taxi-Type, Pickup, From and To; the Drop
tables show VID, Pickup Time, ETD, From, Location and To. All use dt-wrapper-auto-height so
each panel sizes to its rows rather than paginating.
Customize: The time buckets, table data and refresh interval are driven by
assets/js/pages/bookings/bookingPlanner.js. Add or remove a bucket by copying a card panel
block and giving its table a new id; adjust columns in the matching thead.
Auto-Assigned Bookings (autoAssignedBookings.html)
A DataTable of regular/recurring trips that the dispatch engine assigned automatically (e.g. standing daily pickups). Operations staff review and adjust these assignments.
Columns: row checkbox, #, Customer Name, Mobile, From, To, Vehicle Type, Pickup Time, Days in
Week, Fare, Status and Action. A hidden multi-filter panel (#show_multiple_filter_div) and the
per-column search/select row (apply_search / apply_select) come from the shared table setup.
Customize: Columns and search affordances are set in the thead; data and row actions live
in assets/js/pages/bookings/autoAssignedBookings.js. See Tables for
the filter panel and column-search wiring.
Intercity Bookings (intercityBookings.html)
A DataTable for outstation / intercity trips, which carry extra route and return-date fields that local bookings don't.
Columns: row checkbox, #, Booking ID, Customer Name, Mobile, From City, To City, Trip Type, Journey Date, Return Date, Vehicle Type, Status and Action. Same hidden multi-filter panel and column search/select row as the other list pages.
Customize: Edit the thead for columns; data and actions are in
assets/js/pages/bookings/intercityBookings.js. The Trip Type and Vehicle Type columns use
apply_select filters — populate their options from your trip-type list.
Cancelled Bookings (cancelledBooking.html)
A report listing cancelled trips with who cancelled and why, used for refund handling and loss analysis.
Columns: row checkbox, #, PNR, Customer, Phone, From, To, Amount, Cancelled By and Reason. The
Cancelled By and Reason columns are apply_select filters so you can slice by cancellation
source or reason; a date-range multi-filter panel is available.
Customize: Driven by assets/js/pages/reports/cancelledBooking.js. Define your cancellation
reason and source lists there so the column filters and any charts stay consistent.
Call Flow (callFlow.html)
A call-summary report that aggregates inbound calls by type rather than listing individual trips — a quick read on how call volume converts into bookings.
Columns: row checkbox, S.No, Call Type, No of Calls, Percentage, Avg Duration and Trend. The
Call Type values mirror the Call Type field on bookingV1
(Booking, Enquiry, Follow-up, Feedback, VNA), and Trend is an apply_select filter.
Customize: Aggregation and the trend indicator come from
assets/js/pages/reports/callFlow.js. Keep the call-type list aligned with the booking form's
callType options so the summary totals match.
PNR Lookup (pnr.html)
A booking-record lookup keyed by PNR, with a KPI strip on top and a full searchable table below. Used to find and track any trip after the fact.
The top row holds four summary cards — Total Bookings, Completed Trips, Total
Revenue and Cancelled Trips (these are the same KPI tiles documented in
Widgets). Table columns: row checkbox, #, PNR, Booking Date, Customer,
Pickup, Drop, Vehicle Type, Fare, Payment, Trip Status and Action. Payment, Vehicle Type and
Trip Status are apply_select filters.
Customize: The summary-card totals and table data are computed in
assets/js/pages/reports/pnr.js; point them at your own dataset. The PNR shown here is the same
identifier surfaced on the Cancelled Bookings report,
so keep the PNR format consistent across both.
